LGX40 – High Rise Scissor Lift

Scroll down for delivery pricing.

  • Single Phase 240v
  • 3000kg Capacity
  • 1800mm Lifting Height
  • 110m Closed Profile.

The LGX40 is a new lift suitable for panel repairs, changing tyres and working under the vehicle. Raise vehicles to full standing height safely and securely with this car scissor lift.

cargo lift

How Our LGX40 Car Scissor Lift Works

Using a 240v hydraulic power unit powering two cylinders in each platform it raises the lift from ground level all the way up to 1800mm to give standing clear underneath access to the vehicle. With 3000kg lifting cpacity

Without a cross-stay between the driveways, you have full access to the underside of the car for basic repairs. Get in touch for a personalised quote.

What is special about the Lift Giant LGX40?

A lot of thought has gone into the design and features on the LGX40 scissor lift to make it both user friendly but also excellent value for money.

  • Assisted Fulcrom: giving the scissor a boost instead of the cylinders being directly connected to the scissor, it allows the cylinder to start extending before taking the load.
  • No compressed air requirement: Simple push button opperation, just push the down button and it goes straight down, using double acting cylinders there is pressure left on both sides of the cylinders so lift remains held at the height you stop at.
  • Extending Up Ramps: Up ramps can be locked in the horizontal position to take longer wheel base vehicles, making the lift truly versatile.

LGX40 High Rise Quote Request Form

10 + 13 =







**New For 2024 – Low Profile Extension Ramps **

Coming in January we have our next composite up ramp extensions. Ideal for getting low profile cars onto our ramps. But also compatible with many other brands of scissor lifts.

Designed and engineered in the Netherlands out of quality material and built to last.

Priced at £550 inc vat for a set of 4.

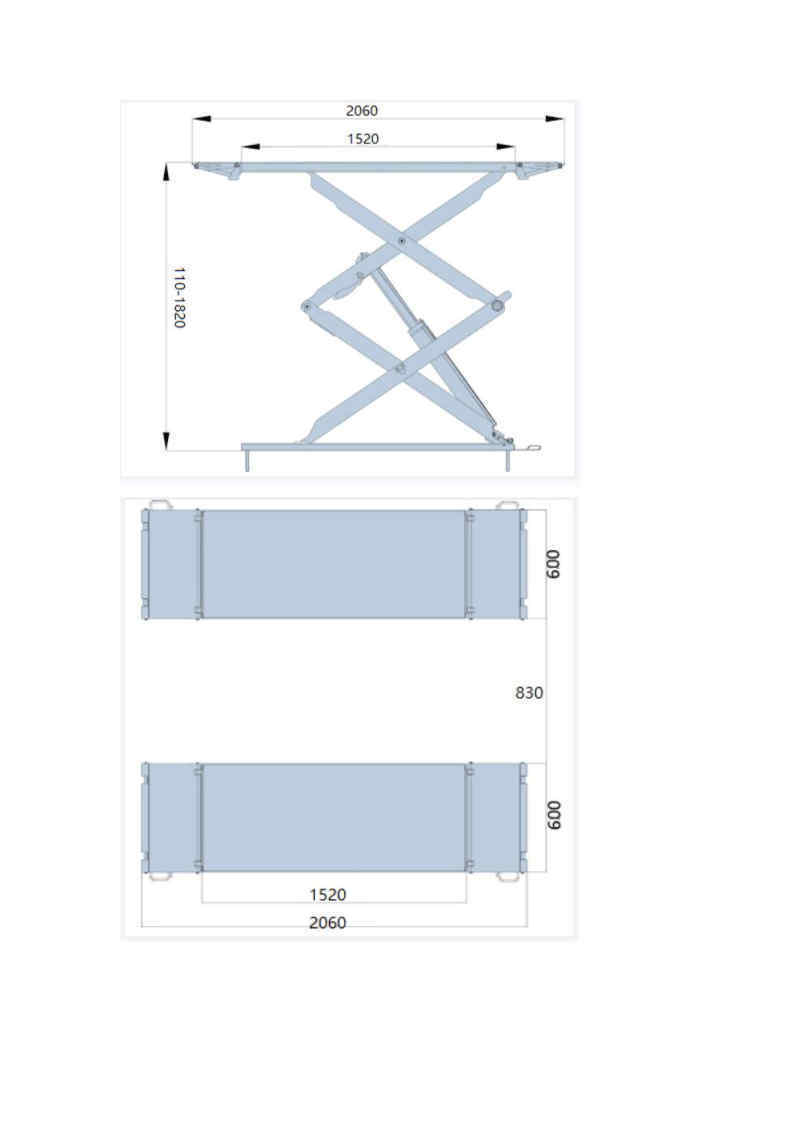

Click through gallery to see different pictures and dimensional drawing.

Enquire here for pricing and stock availability

DELIVERY PRICES

Blue Zone

Economy grouped delivery £290  Or  Express dedicated trip £390

Green & Yellow Zone

Economy grouped delivery £320  Or  Express dedicated trip £3420

Red Zone

Economy grouped delivery £390  Or  Express dedicated trip £450

Grey Zone

Price by application only

Central London – Prices as per red zone

All deliveries done on flatbed van with tail lift and pallet truck with lift delivered to driveway so clear access is required. Van will reverse up as close to garage entrance as possible to deliver but no guarantees made they can leave it in your garage.

Named day and timed delivery only available with express service. Otherwise for grouped service we will tell you the day it is being delivered and it will be any time between 09:00-17:00. If you cannot do that day then you will have to wait till we can next group in your area. We cannot give you an more accurate an eta when choosing grouped service.

Lift does not come supplied with hydraulic fluid. This is an additional £45 for 5L and if ordered from us will arrive by separate courier.

✓ Ideal For Both Private & Commercial Use
✓ Assisted Fulcrom Lifting
✓ Locking Upramps To Increase Platform
✓ 24V Lock Release
✓ No Requirement For Compressed Air

WHY CHOOSE LIFT GIANT?

​Here at Lift Giant, we have three key promises when you buy one of our lifts: low prices, quick turnaround time, and great quality.

Low Prices: By keeping our overheads down to a minimum and using economies of scale when sourcing lifts we are able to beat all other comparable lift suppliers when it comes to price.

Quick turnaround: We have storage both here in the UK and in Holland, with regular container loads of lifts on their way from the factory. This means we will always have your chosen lift either in stock or being delivered very soon. Why wait twelve to fourteen weeks for delivery from other suppliers when you can have your lift in a fraction of that time?

Great quality: Working closely with our factories, we have come up with precise specifications for our lifts, detailing the exact components that go into making them, from the hydraulic hose specification to the sensitivity of the anti-burst valves.

It is this attention to detail that we think sets us apart. Buy from somebody who knows exactly what it is they are supplying you.

Other Services We Offer

Design Consultation:Telephone or video call consultation allows us to fully understand what your requirement is and discuss your budget.
Proposal: Our design and sales team will use this initial consultation to submit a proposal that we feel matches your brief.
Installation: Our proposal will include an option for your system to be installed by fully trained lift engineers.

Servicing and maintenance

Every car lift requires regular inspections and maintenance. Keep your car lift system in top condition with a Lift Giant servicing package. Our aftersales support will be available when required.

We are more than happy to help.

Get in touch with us if you have any questions, our dedicated team at Lift Giant offer years of experience in carparking lift solutions.
